- New product DTMB AVS+ Terrestrial Digital TV Decorder with CA function
- 【Brief】：
1. Powerful IC chip : Sunplus 7C51D sulution
2. Stable singal quality
3. Fully compatible DTMB AVS+ Standard
4. Support PAL/NTSC
5. EPG （Eletronice Program Guide)
6. Support PVR ( Personal Video Recorder)
- 【Series】：DTMB AVS+ Set Top Boxes
- Description
New product DTMB AVS+ Terrestrial Digital TV Decorder with CA function
Ⅰ.General 1.Produce Type Name Produce Type Number DTMB AVS+ 2.Main Features STB Type DTMB Main Chipset MSD 7C51DDE SDRAM Memory DDR3 Flash Memory MIPS34Kf Demodulator Type MSB1230 Chip Set Interface HDMI. CVBS.CVBS、Audio L/R、YPbPr、COAXIAL S/PDIF.Need USB 2.0 Embedded Host Ⅱ.Software Features Radio Frequency and Channels ● RF input: 474-858MHZ ● Input impedance: 75Ω ● Input level: -10~-86dbm ● Demodulation mode: 16QAM、 32QAM、 64QAM ● Channel bandwidth: 8M Video Output ● Video format: MPEG-2 、MPEG4、AVS 、AVS+ 、H.264 ● Video output level: 700±30mv(p-p) ● Video synchronization level: 300±30mv(p-p) ● Physical interface: CVBS Audio output ● Audio output level: ≥-8 db ● Audio degree of distortion: ≤1.0(20~20khz) ● Audio amplitude-frequency characteristic: ±2(20~20khz) ● Input mode: left and right sound channel ● Physical interface: CVBS Power Supply ● Input voltage: 100~240V 50/60HZ ● Power: ≤10W ● Standby : ≤1W
Package details :

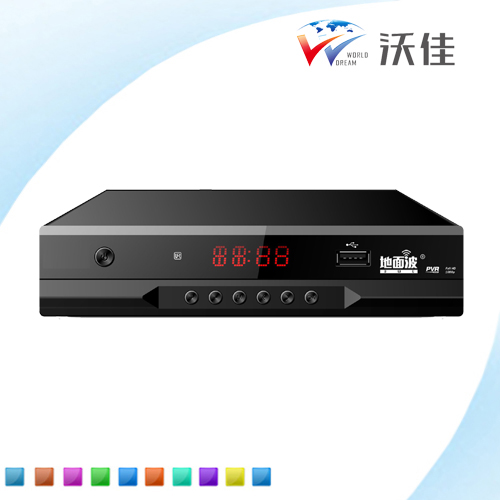

168mm
Machine size : 168*95*35 mm
Net weight : 0.50kg
Gross weight: 0.60kg
Carton: 40 pcs/ carton
Carton size : 52.5*40*37 cm

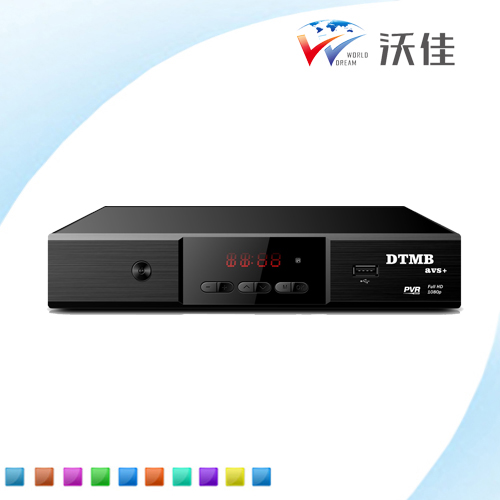

220mm
Machine size :220*140*35 mm
Net weight : 0.55kg
Gross weight: 0.65kg
Carton: 50 pcs/ carton
Carton size : 52.5*45.5 *25.5 cm
