- OTT ATSC amlogic S905D android tv box Support KODI 17.1
- 【Brief】：
Android system : 7.1
CPU : Amlogic S905D
RAM : DDR3 1GB
EMMC Flash: 8GB
DC INput: 5V/2A
Support KODI :17.1
- 【Series】：OTT+ATSC
- Description

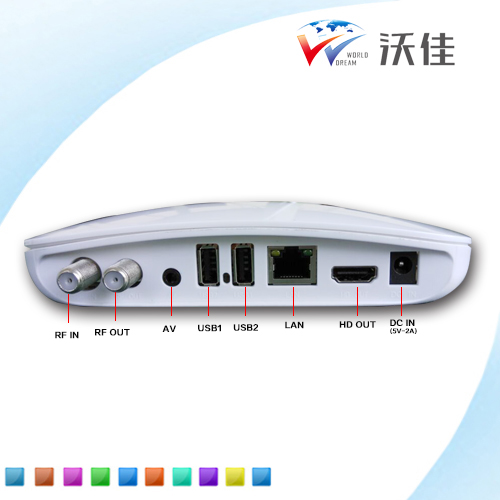

Model OTT+ATSC Hardware CPU Amlogic S905D Quad Core ARM Coretex-A53 Up to 2.0GHz(DVFS) GPU Penta-Core ARM Mali-450 Up to 750MHz+(DVFS) RAM DDRIII 1GB EMMC Flash EMMC Flash 8GB (Optional 4GB,8GB,16GB,32GB) WiFi 802.11 b/g /n Blutooth NO (Bluetooth 4.0Optional) IR IR Infra Remote control LED Indicator red LED Standby,green LED Run Rear Panel RF IN Standard ISO/IEC 13818-1; ARIB STB-B10 RF OUT loop through function
2*USB 2.0 Embedded two Host HDMI 2.0 4K 2K ; HDCP2.2 Ethernet 10/100M ,Standard RJ-45 1*AV Output DC input 5V/2A or 12V/1A Demodulation ATSC Standard ISO/IEC 13818-1; ARIB STB-B10
Input max. bit stream rate: 36Mbps (serial) / 9Mbps (parallel)
ATSC NTIA and 8VSB Standard
QPSK, 64QAM, 256QAM
FEC: 1/2, 2/3, 3/4, 4/5,5/6,
Guard Interval: 1/4,1/8,1/16,1/32,1/128
FFT Mode: 2K, 8K, 32K
RF input frequency: 54-803MHz Bandwith: 6MHz Input level: -83 - -5dBm Decoding\System Operating System Android 7.1 OS Video Decoding -VP9 Profile-2 up to 4K*2K@60fps
-H.265 HEVC MP-10@L5.1 up to 4K*2K@60fps
-H.264 AVC HP@L5.1 up to 4K*2K@30fps
-H.264 MVC up to 1080P@60fps
-MPEG-4 ASP@L5 up to 1080P@60fps(ISO-14496)
-WMV/VC-1 SP/MP/AP up to 1080P@60fps
-AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
-MPEG2 MP/HL up to 1080P@60fps
-MPEG1 MP/HL up to 1080P@60fps
-RealVideo 8/9/10 up to 1080P@60fps
* Low latency 1080P H.264 60fps encoder
* HDR10 and HLG HDR Video Processing
* Supports *.mkv,*.mpg,*.wmv,*.mpeg,*.dat,*.avi,*.mov,*.iso,*.mp4,*.rm and *.jpg file formats
* Video/Picture Encoding
-Independent JPEG and H.264 encoder with configurable performance/bit-rate
-JPEG image encoding
-H.264 video encoding up to 1080P@60fps with low latencyAudio Decoding Low power MediaCPU with DSP audio processing
Supports MP3,AAC,WMA,RM,FLAC,Ogg and programmable with 7.1/5.1 down-mixing
Built-in stereo audio DAC
Built-in SPDIF/IEC958 and PCM serial digital audio input/output
Supports concurrent dual audio stereo channel output with combination of analog+PCMo or I2S+PCMPicture JPEG,PNG,BMP,GIF,JPG Language Chinese , English ,Germany ,Japanese, Korea etc. 24 languages KODI Support KODI 17.1 Remote Support Infra Remote control Appliactions Online Browse all video websites ,support Netflix ,Hulu ,Flixster , youtube etc Apps Apps download freely form android market ,amazon appstore etc Medium Local Media playback,support HDD, U disck ,SD card Talk online Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc Others Support wifi hotpiont ,could be as a wireless router Support DLNA, AirPlay, Google TV Remote etc Accessories Accessories gift box HDMI cable optional IR remote control Power charger adapter 5V/2A or 12V/1A User Manual Loading Loading machine size Packaged size machine weight Packaged weight Loading for 40GP Loading for 20HQ
