- DVB-S2 Digital Satellite TV Box Support MPEG-4 and H.264 Decoder android satellite Set Top Box
- 【Brief】：
1. CPU : Amlogic S805 Qual Core Coretex-A5 Up to 1.5GHz2. GPU : Qual Core Mali-450 Up to 400MHz
3. Nand Flash : Nand Flash 8GB (Optional 4GB,8GB,16GB,32GB)
4. Rear Panel : Power input 5V/2A
5. Operating System : Android 4.4.2 OS
6. KODI : Support KODI 16.0/16.1
7. Blutooth : Bluetooth 4.0
8. WiFi : Support 802.11 b/g /n
- 【Series】：OTT+ATSC
- Description
Product specification :

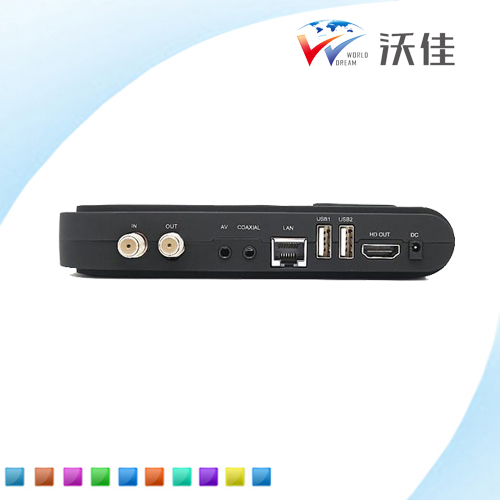

Product Description Model V8 (S805+T2) / OTT&DVB-T2 Hardware OF V8 ANDROID OTT DVB-T2 CPU Amlogic S805 Qual Core Coretex-A5 Up to 1.5GHz GPU Qual Core Mali-450 Up to 400MHz Memory DDRIII 1GB Nand Flash Nand Flash 8GB (Optional 4GB,8GB,16GB,32GB) Front Panel IR Infra Remote control red LED Standby,green LED Run Rear Panel Tuner RF input connector Tuner RF Loop through connector 2*USB 2.0 Embedded two Host HDMI 1.4b Ethernet 10/100M ,Standard RJ-45 RCA CVBS AL AR Connector x1 1*SD CARD Power input 5V/2A Demodulation OF V8 ANDROID OTT DVB-T2 Terrisal Receiver Standard DVB-T2/T(EN_302755 V1.3.1/EN 300744) Input RF Frequency 48~866MHZ Bandwidth 6MHz,7MHz,8MHz Constellation QPSK 16-QAM 64-QAM and 256-QAM FEC 1/2, 3/5,2/3, 3/4,4/5,5/6 Guard Interval 1/128 1/32 1/16 19/256 1/8 19/128 1/4 FFT Mode 2K/ 8K/32K Support Support Single and multiple PLPS Input level -83 - -5dBm System OF V8 ANDROID OTT DVB-T2 Operating System Android 4.4.2 OS Video Player Supports H.265, H.264, VC-1, MPEG-1/2/4, RealVideo, DivX / Xvid, VP6, AVC video encoding, etc. Audio Player Supports MP3, FLAC, AAC, WMA, APE, AMR, MID, OGG, WAV and other audio formats Picture JPEG,PNG,BMP,GIF,JPG Adobe Flash Adobe Flash 10.1 support or above Language Chinese , English ,Germany ,Japanese, Korea etc. 24 languages KODI Support KODI 16.0/16.1 Blutooth Bluetooth 4.0 WiFi Support 802.11 b/g /n 3G dongle Support most external 3G USB dongle Remote Support Infra Remote control Appliactions OF V8 ANDROID OTT DVB-T2 Online Browse all video websites ,support Netflix ,Hulu ,Flixster , youtube etc Apps Apps download freely form android market ,amazon appstore etc Medium Local Media playback,support HDD, U disck ,SD card Talk online Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc Others Support wifi hotpiont ,could be as a wireless router Support DLNA, AirPlay, Google TV Remote etc Accessories OF V8 ANDROID OTT DVB-T2 Accessories gift box AV cable optional HDMI cable optional IR remote control Power charger adapter User Manual
