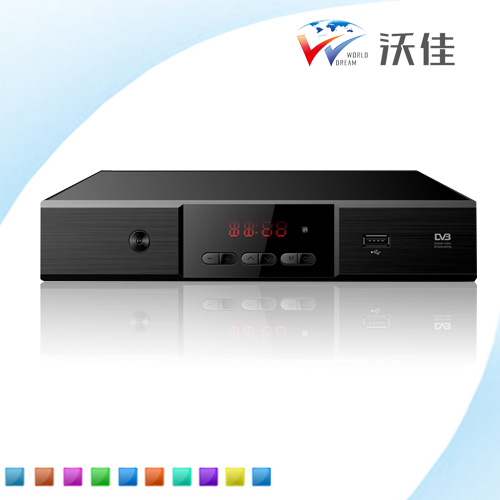

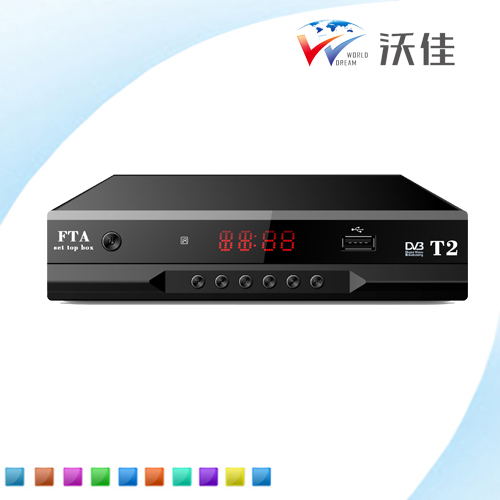

Front panel：

l  7 buttons: Standby, Menu, Ok, CH+,CH- VOL+,VOL-

l  2 light Led: standby, signal

l  4*8 segment LED display

Rear Panel connections:

l  1* ANT In

l  3 RCA (1*Video  1*Audio-L, 1*Audio-R)

l  1 S/PDIF(Coaxial)

l  1 USB(V2.0)

l  1 HDMI(V1.3)

l  1 Power switch

Hardware Features:

Main decode chipset: Mstar 7T00 chipset

SDRAM : 512M bits DDR2

Flash: SPI flash 4M bytes

Standard DVB Features:

l  Advanced HD MPEG2/MPEG4/H.264/H.265/VC-1 fully -T/T2 compliant

l  Full video resolution 1080p/1080i/720p/576p/576i/480p/480i

l  Aspect ratio: 4:3/4:3LB/4:3PS/16:9/16:9LB/16:9PS

l  Low power standby mode

l  3 hours auto standby if no operation

l  256 colors Friendly OSD menu

l  Multi-Language(English French Deutsch Italian Spanish Swedish Portuguese Turkish Arabic)

l  auto and manual search

l  VBI and OSD TTX

l  Subtitle support

l  8 programs Timers

l  Fully support 7 days EPG

l  Parents control(programs lock and parental rating)

l  LCN support

l  8 favorite groups

l  Max 5000 programs

l  Default database

l  Database editor on PC

l  Update SW and database separate via OTA(SSU standard),USB

USB Features:

l  USB2.0 supported

l  PVR and Timeshift support

l  FAT16/32 NTFS file system support

Media Play Features:

l  Video file playback (.mpg .dat.vob.avi,mov,rm.rmvb,mkv)( Divx 4.0/5.0 support)

l  Video subtitle support

l  AVI subtitle(Internal)

l  AVI subtitle(External)filetype(*.srt,*.smi,*.psb,*.sub,*.ssa,*.ass,*.txt)

l  Audio file playback (.mp3 .wma, .wav .aac)

l  Image file playback (.jpg .bmp .gif,png,,tif,tiff)(hard ware jpg decode)

l  Text file play(.txt)

l  Audio EQ(standard/classic/rock/jazz/pop)

l  Audio Surround(concert/church/passive/live)

Game

l  Native OSD game(Box Man, Tetris, Hit Rat, GoBang, Sudoku)

Internet

l  USB WIFi: RT5370 or MTK7601

Descramble

l  Biss
