产品信息介绍：

商品名称： 高清地面数字机顶盒

商品尺寸： 220*140*40mm

商品品牌： OEM

商品颜色： 黑色

材料组成： 五金铁壳

1、Hardware

CPU: MSTAR-MSD7802(128 pin) MIPS 34Kf@600MHz

Memory: 32X16Mbit, DDR2 Frequency1066

Flash: 32M bytes

Demodulator Type: MSB1237 Chip Set

TUNER: Rafael R836

USB 2.0: Embedded One Host,

Front Panel: 4-digit LED display on front panel

              red LED Standby, green LED Lock

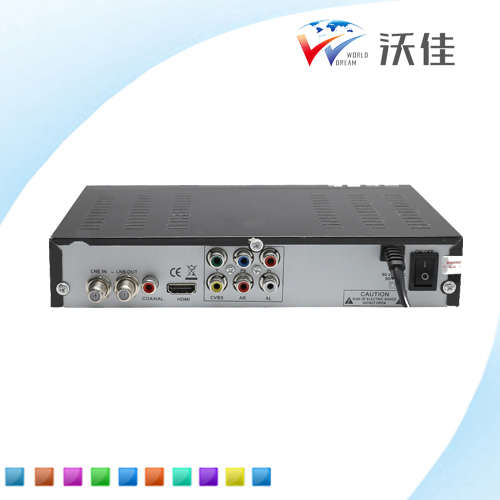

Rear Panel: Tuner RF input connector     Standard ISO/IEC 13818-1; ARIB STB-B10

Tuner RF Loop through connector loop through function

              HDMI V1.3

              AV RCA x1

              Ypbpr RCAx1

              Coaxial x1

              Power: AC100~240V ,50Hz/60Hz

Demodulation: Standard ISO/IEC 13818-1; ARIB STB-B10

Input max. bit stream rate: 36Mbps (serial) / 9Mbps (parallel)

ATSC NTIA and 8VSB Standard

QPSK, 64QAM, 256QAM

FEC: 1/2, 2/3, 3/4, 4/5,5/6,

Guard Interval: 1/4,1/8,1/16,1/32,1/128

FFT Mode: 2K, 8K, 32K

RF input frequency: 54-803MHz

              Bandwith: 6MHz

Input level: -83 - -5dBm"

2、Sortware Features

•USA ATSC 8VSB /64/256 QAM digital broadcast HD receiver

•Converts digital broadcast to your analog TV

•By remote control to choose the RF 3/4 ch output

•Sleep Timer

•Support teletext/subtitle/muti-language

•Powerful and highly effective 7-day EPG function

•AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen•USB 2.0 for PVR, TIMESHIFT, software upgrade and media files playback

•Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P

3、Decoder

Video Decoder：

Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818

MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)

MPEG-2 Main Profile# Main Level(15Mbps)

H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)

Audio Decoder：

MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA

E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-channel decoding

4、Powerful Multimedia Features

Media Codec：avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc

Audio Codec：WMA, MP3, AAC (.wma,.mp3,m4a)

Photo Codec：JPEG, BMP, PNG

5、Multimedia License

Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License.

6、Accessories

Gift box

         AV cable optional

         HDMI cable optional

         IR remote control

         User Manual
