- 加拿大ATSC地面无线数字高清机顶盒
- 【简述】:
额定电压:100~245V
额定功率:10W
额定频率:50/60Hz
功能:地面数字电视接收
品牌:OEM
适用设备:高清机顶盒
型号:ATSC
选台方式:自动,手动
有无显示屏:有
有无遥控器:有
颜色:黑色
产品规格:220*140*40mm
分辨率:1920*1080P
AC3杜比音效:支持
CE、Rosh认证:支持
- 【系列】:ATSC高清机顶盒 美国/加拿大/墨西哥
- 产品描述
产品信息介绍:
商品名称: 高清地面数字机顶盒
商品尺寸: 220*140*40mm
商品品牌: OEM
商品颜色: 黑色
材料组成: 五金铁壳
1、Hardware
CPU: MSTAR-MSD7802(128 pin) MIPS 34Kf@600MHz
Memory: 32X16Mbit, DDR2 Frequency1066
Flash: 32M bytes
Demodulator Type: MSB1237 Chip Set
TUNER: Rafael R836
USB 2.0: Embedded One Host,
Front Panel: 4-digit LED display on front panel
red LED Standby, green LED Lock

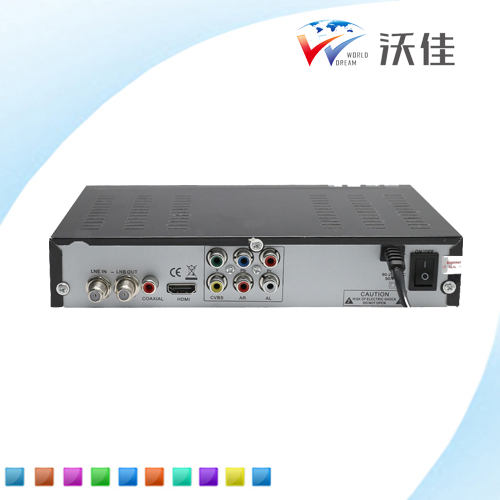

Rear Panel: Tuner RF input connector Standard ISO/IEC 13818-1; ARIB STB-B10
Tuner RF Loop through connector loop through function
HDMI V1.3
AV RCA x1
Ypbpr RCAx1
Coaxial x1
Power: AC100~240V ,50Hz/60Hz
Demodulation: Standard ISO/IEC 13818-1; ARIB STB-B10
Input max. bit stream rate: 36Mbps (serial) / 9Mbps (parallel)
ATSC NTIA and 8VSB Standard
QPSK, 64QAM, 256QAM
FEC: 1/2, 2/3, 3/4, 4/5,5/6,
Guard Interval: 1/4,1/8,1/16,1/32,1/128
FFT Mode: 2K, 8K, 32K
RF input frequency: 54-803MHz
Bandwith: 6MHz
Input level: -83 - -5dBm"
2、Sortware Features
•USA ATSC 8VSB /64/256 QAM digital broadcast HD receiver
•Converts digital broadcast to your analog TV
•By remote control to choose the RF 3/4 ch output
•Sleep Timer
•Support teletext/subtitle/muti-language
•Powerful and highly effective 7-day EPG function
•AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen•USB 2.0 for PVR, TIMESHIFT, software upgrade and media files playback
•Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P
3、Decoder
Video Decoder:
Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818
MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)
MPEG-2 Main Profile# Main Level(15Mbps)
H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)
Audio Decoder:
MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA
E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-channel decoding
4、Powerful Multimedia Features
Media Codec:avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc
Audio Codec:WMA, MP3, AAC (.wma,.mp3,m4a)
Photo Codec:JPEG, BMP, PNG
5、Multimedia License
Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License.
6、Accessories
Gift box
AV cable optional
HDMI cable optional
IR remote control
User Manual
