- 产品描述

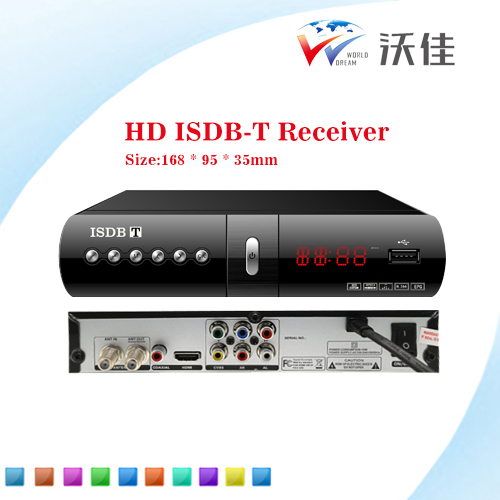

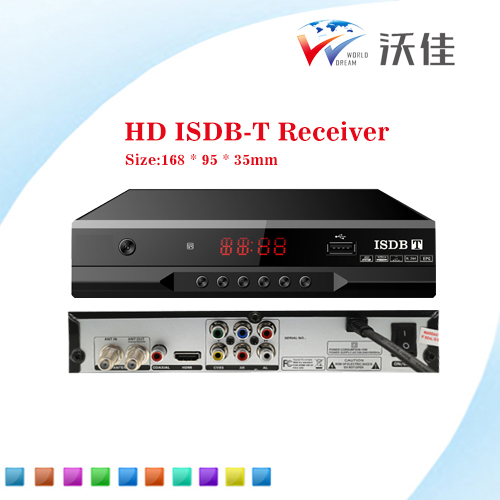

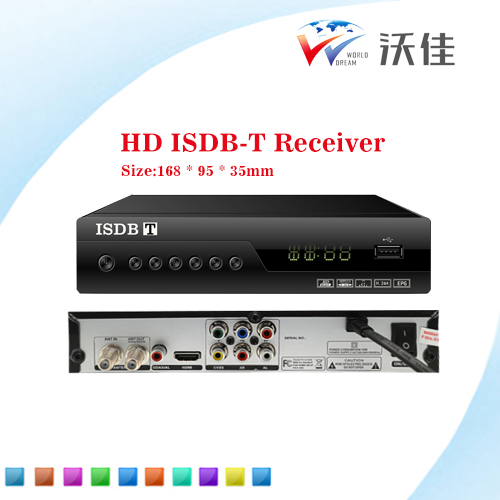

巴西/菲律宾/阿根廷ISDB-T 高清数字电视机顶盒
Model Hardware CPU MSTAR-MSD7805(128 pin) MIPS 34Kf@600MHz Memory 32X16Mbit DDR2 Frequency1066 Flash 32M bytes Demodulator Type ISDB SOC Chip Set TUNER Rafael R836 Front Panel USB 2.0 Embedded One Host, 4-digit LED display on front panel red LED Standby,green LED Lock Panel KEY, POWER, CH+ ,CH- Rear Panel Tuner RF input connector EC-type IEC169-2 Female
Tuner RF Loop through connector IEC-type IEC169-24 Male
HDMI V1.3/V1.4 RCA CVBS AL AR Connector x1 Ypbpr RCAx1 Coaxial x1 Power AC100~240V 50Hz/60Hz Demodulation Terrisal Receiver Standard ISDB-T broadcast (1, 3, 13 segment) Input RF Frequency VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz.
Bandwidth 6MHz Demodulatio QPSK / 16QAM / 64QAM/QPSK or DQPSK FEC 1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic
Guard Interval 1/4，1/8，1/16，1/32
FFT Mode 2K/ 8K/32K Input level -83 - -5dBm Sortware Features •used for any ISDB-T countries like Brazil, Peru, Argentina,Chile,Venezuela,PhilippinesEcuador •Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX compliant
•Support 3D interface •Support teletext/subtitle/muti-language
•Supported 7-Day EPG function, VBI Teletext
•AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen •USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback •Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P Decoder Video Decoder
Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818
MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)
MPEG-2 Main Profile# Main Level(15Mbps)
H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)
Audio Decoder
MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA
E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding
Powerful Multimedia Features
MediaCodec avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc Audio Codec WMA,MP3,AAC (.wma,.mp3,m4a)
Photo Codec JPEG, BMP, PNG
License Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License. Accessories Accessories gift box AV cable optional HDMI cable optional IR remote control User Manual
1.We accept payment via TT (Bank transfer), Western Union, and PayPal.
2.We only accept bank transfer for large orders. For small order, you can pay via Western union or PayPal.
DHL,UPS ,FEDEX Express, or by air /by ocean ,or as customers' requirment.
1.All electronic products (included brand ones) may have problem after used for a period of time.
2.We provide 1 year warranty for all products. Please contact me if you need our detail warranty term
