- 乌干达/肯尼亚/中亚/吉尔吉斯斯坦/塞尔加尔高清DVB-T2+S2 COMBO 机顶盒
- 【简述】：

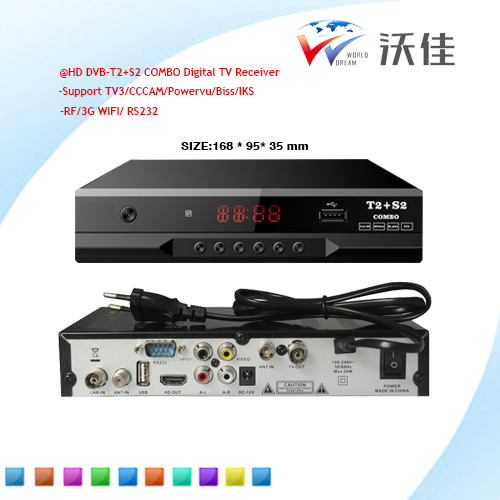

1. Model : DVB-T2+S2 COMBO
2. CPU : Sunplus 1505A/1505B
3. S2 TUNER : M88TS2022
4. T2 TUNER : MaxLinear MXL 608
5. H.264 : Supportg
6. TV System : Auto / PAL / NTSC
7. Support Software Upgrade by OTA and USB
- 【系列】：DVB-T2+S2 combo高清机顶盒
- 产品描述
乌干达/肯尼亚/中亚/吉尔吉斯斯坦/塞尔加尔高清DVB-T2+S2 COMBO 机顶盒
Ⅰ.General 1.Produce Type Name Produce Type Number DVB-T2+S2 2.Main Features STB Type T2+S2 Main Chipset SUNPLUS SPHE1505B SDRAM Memory 32X16Mbit DDR2 Frequency1066 Flash Memory 32Mbits Demodulator Type AVL6862TA Chip Set TUNER Type Rafael R848 BOARD TUNER Design Interface HDMI.CVBS.232,Audio L/R、YPbPr、COAXIAL S/PDIF.Need USB 2.0 Embedded Host SMPS Type SMPS PCB 2 layer FR4 4.Notice RoHS Need Certification CE Authentication by CCS Ⅱ.Software Features 1.Software General Features(DVB-2) MPEG4 Fully comply with DVB-T2/S2, MPEG-2/4 H.264 Standard
PAN/NTSC Automatic PAL/NTSC conversion Channels Number 4000 channels memory capacity Favorites 8 different favorite groups selection OSD Language English French Czech Danish RUSSIAN German Italian Dutch Danish Swedish Finnish Turkish -etc EPG Fully support to 7 days Electronic Program Guide(EPG) Picture support：JPG， JPEG，JPE，BMP，PNG Channel Search Channel search in automatic, manual and network search Channel Edit Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort) Parental Lock Parental control for channels Easy Menu Plug and Play installation, with an ease to use Menu System SoftUpgrade Software upgrades through USB Time Set Time set by GMT offset automatic and manual,Summer Time support Teletext Support OSD/VBI Formart Subtitle Subtitle support Searching time High speed scan Save Channel Automatic save for last channel LCN Support Logic Channel Number(LCN) Power Auto Power Down Ant-Ana Ctrl Active Antenna Power supply control Ⅲ.Electric Performance 1.DVB-T2 Tuner Demod Demodulator Type AVL6862TA Chip Set Tuner Type Rafael R848 BOARD TUNER Design Input RF Frequency 48~858MHZ Bandwidth 6MHz,7MHz,8MHz RF tuner & DVB-T2 Channel Complied Standard ETSI EN 302 755 V1.1.1 (2009-09)Input impedance 75ohm Sensitivity Level - 20~ - 83dBm DeModulation COFDM Mode IFFT 1k, 2k, 4k, 8k, 16k, 32k FEC Mode LDPC + BCH 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Guard intervals 1/4,19/128,1/8,19/256,1/16,1/32,1/128 Constellation QPSK, 16QAM, 64QAM, 256QAM Scattered Pilots 1%, 2%, 4%, 8% of total Continual Pilots 0.35% of total Typical data rate (UK)
40 Mbit/s Max data rate
(@20 dB C/N)
47.8 Mbit/s Required C/N ratio
(@22 Mbit/s)8.9dB DVB-T2 Input profiles PLP Support Single and multiple PLPS Ant Power
Max 200mA DVB-S2 Tuner Demod Demodulator Type AVL6862TA Chip Set Tuner Type Rafael R848 BOARD TUNER Design Input RF Frequency 950~2150MHz RF tuner & DVB-T2 Channel Complied Standard ETSI EN 302 307 Input impedance 75ohm Sensitivity Level 0~ - 86dBm DeModulation QPSK, 8PSK 16ASK 32ASK FEC Mode 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10 Scattered Pilots 1%, 2%, 4%, 8% of total Continual Pilots 0.2, 0.25 0.35 Typical data rate 1~55 Mbit/s Ant Power
Max 300mA 4.Environment Input Voltage AC 90～250V，50Hz/60Hz Consumption Max 12W Temperature 0～40℃ Humidity <95％
1.We accept payment via TT (Bank transfer), Western Union, and PayPal.
2.We only accept bank transfer for large orders. For small order, you can pay via Western union or PayPal.
DHL,UPS ,FEDEX Express, or by air /by ocean ,or as customers' requirment.
1.All electronic products (included brand ones) may have problem after used for a period of time.
2.We provide 1 year warranty for all products. Please contact me if you need our detail warranty term
