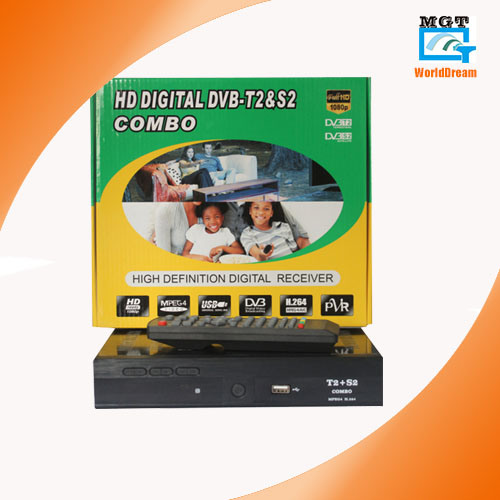

- 卫星高清接收机 DVB-T2+S2
- 【简述】：
1. Model : DVB-T2+S2 COMBO
2. CPU : Sunplus 1505B
3. S2 TUNER : M88TS2022
4. T2 TUNER : MaxLinear MXL 608
5. H.264 : Supportg
6. TV System : Auto / PAL / NTSC
7. Support Software Upgrade by OTA and USB
- 【系列】：DVB-T2+S2 combo高清机顶盒
- 产品描述
Product Specification :
Model DVB-T2+S2 COMBO Hardware CPU SUNPLUS 1505B Memory 32X16Mbit DDR2 f@400MHz Flash 4M bytes Demodulator Type M88DM6000 S2 TUNER M88TS2022 T2 TUNER MaxLinear MXL 608 Front Panel USB 2.0 Embedded One Host, 4-digit LED display on front panel red LED Standby,green LED Lock Panel KEY, POWER, CH+ ,CH- Rear Panel S2 LNB IN input connector IEC60169-2 T2 ANT input connector IEC-162-2(IEC Female) HDMI V1.3 RCA CVBS AL AR Connector x1 Ypbpr RCAx1 Coaxial x1 Power AC100~240V 50Hz/60Hz DVB-T2 Demodulation DVB-T2 Demodulation Terrisal Receiver StandardDVB-T2/T(EN_302755 V1.3.1/EN 300744) Input RF Frequency 48~866MHZ Bandwidth6MHz,7MHz,8MHz Constellation QPSK 16-QAM 64-QAM and 256-QAM FEC 1/2, 3/5,2/3, 3/4,4/5,5/6 Guard Interval1/128 1/32 1/16 19/256 1/8 19/128 1/4 FFT Mode 2K/ 8K/32K Support Single and multiple PLPS Input level -83~ -5dBm DVB-S2 Channel Decoder DVB-S2 Channel Decoder Frequency Range 950MHz-2150MHz Sensitivity Level - 10~ - 81dBm Mode IFFT 2k,8k FEC Mode 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 Guard intervals 1/4,1/8,1/16,1/32 Constellation QPSK、8PSK、16APSK Neighboring channels
immunity and ProtectionAccording to ETSI TR 101 190 V1.2.1 Active Ant Power 13/18V DC @ 500mA MAX,Overload Protection Sortware Features •Fully DVB Compliant and H.264/MPEG-2/MPEG-4/AVS •Support Full / Blind Search on Single / Multiple Satellites •Support Auto / Manual Search on Terrestrial Network •Support DiSEqC 1.0 / 1.1 / 1.2 / USALS / Unicable •Powerful Service Control by Favorites, Lock, Skip, Move, Rename & Delete •Support 7-day EPG, Event Recording by EPG •Support Multi-Language (OSD & Menu) •Maximum 4000 Service Programmable •TV System: Auto / PAL / NTSC •Aspect Mode: Auto / 4:3LetterBox / 4:3PanScan / 16:9 •Video Output Resolution: 480i/576i/480p/576p/720p/1080i/1080P •Support Audio Description (Thailand Standard) •Support Teletext, Subtitle •Support Find / Zoom •Support Parental Lock •Support Software Upgrade by OTA/USB •USB 2.0 Host Support (Time Shift, PVR, MP3 Player & Picture Viewer & Media Player) Decoder Video Decoder
• MPEG2 MP@ML for SD
• MPEG2 MP@HL for HD
• H.264/AVC MP@L3.0 for SD
• H.264/AVC HP@L4.1 for HD
• AVS Jizhun profile @L6.0
• MPEG4 Simple profile @ all levels
• MPEG4 Advanced Simple Profile@ L5 without GMC, data partitioning and Reversible VLC.
• MPEG4 Xvid1.3.2 without GMC
• MPEG4 DivX without GMC
• MPEG4 H263 baseline profile
Audio Decoder
• MPEG-1 LayerI & Layer II Musicam
• MPEG-2 AAC-LC
• MPEG4 HE-AAC
• Dolby Digital (AC3) (optional, depend on CHIPSET)
• Dolby Digital AC-3/E-AC3 (optional, depend on CHIPSET)
• AAC 5.1
Powerful Multimedia Features
Media Codec mpeg2, m2ts, ts, avi, mkv, asf, 3g2, 3gp, mp4, mov, flv, f4v, vob, dvix Audio Codec wav, mp3 Photo Codec jpeg, gif, bmp, png Accessories Accessories Gift Box AV Cable Optional HDMI Cable Optional IR Remote Control User Manual Loading Loading Machine Size 168 * 135 * 35 mm Packaged size Machine Weight Packaged weight Loading for 40GP Loading for 20HQ
